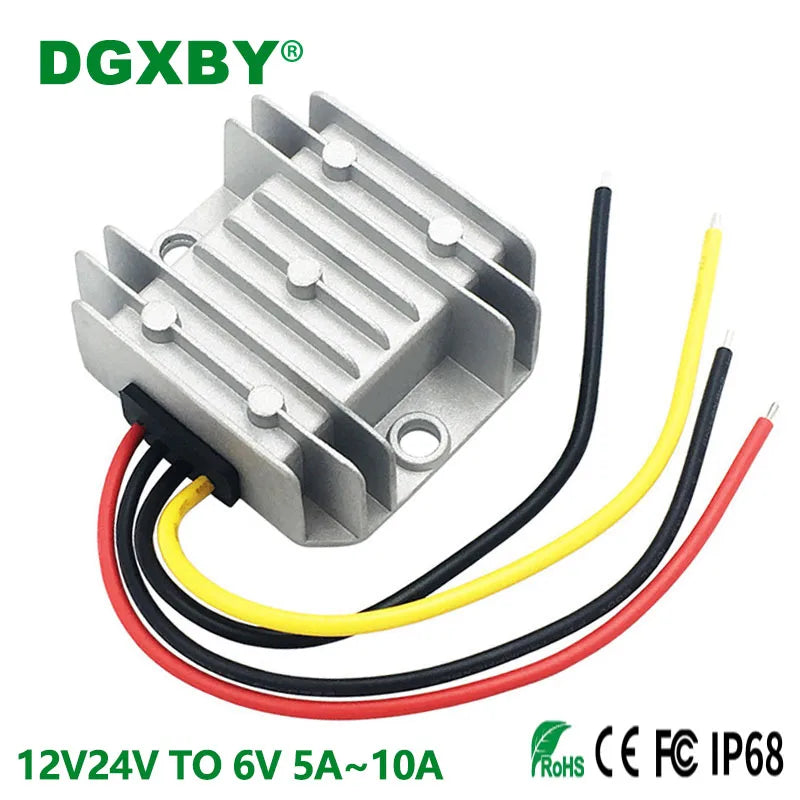

SPECIFICATIONS

Brand Name: DGXBY

Certification: CE,FCC,RoHS,UL

High-concerned chemical: None

Model Number: 12V24V to 6V

Origin: Mainland China

Output Current: 5A~10A

Output Frequency: 50KHz

Output Power: 1 - 50W

Output Type: SINGLE

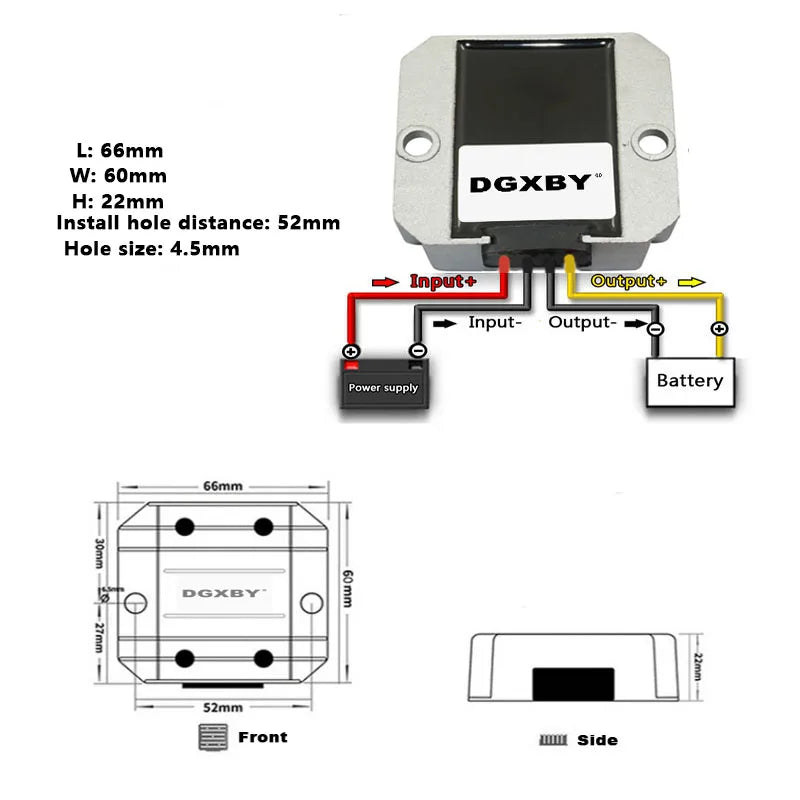

Size: 66*60*22mm

Type: DC/DC Converters

Weight: 100g

is_customized: Yes

Brand: DGXBY

Model: 12V24V to 6V series

Module nature: non-isolated

Input voltage: 12V24V (9~40V)

Output voltage: 6V

Output current: 5A~10A

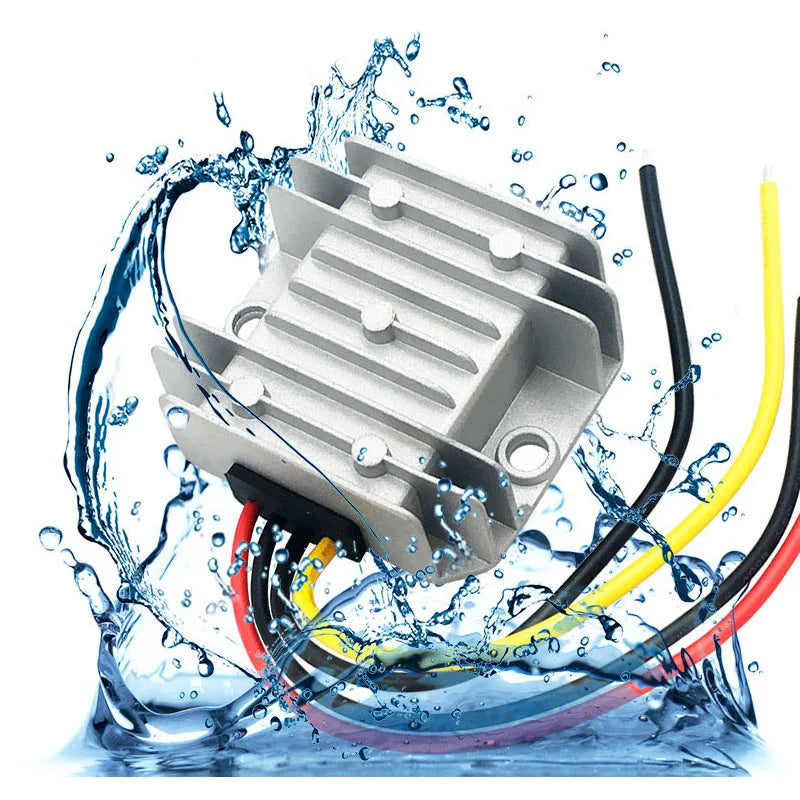

Waterproof grade: IP68

Output power: 30W~60W

Power efficiency: 95%

Power ripple: 200mv

Working temperature: -40~+80°C

Protection functions: output overcurrent protection, output short circuit protection, input undervoltage protection, chip high temperature protection

Weight: 45g~500g

No-load current: 30~50mA

Cooling method: natural heat dissipation

Cord length: 13～15cm

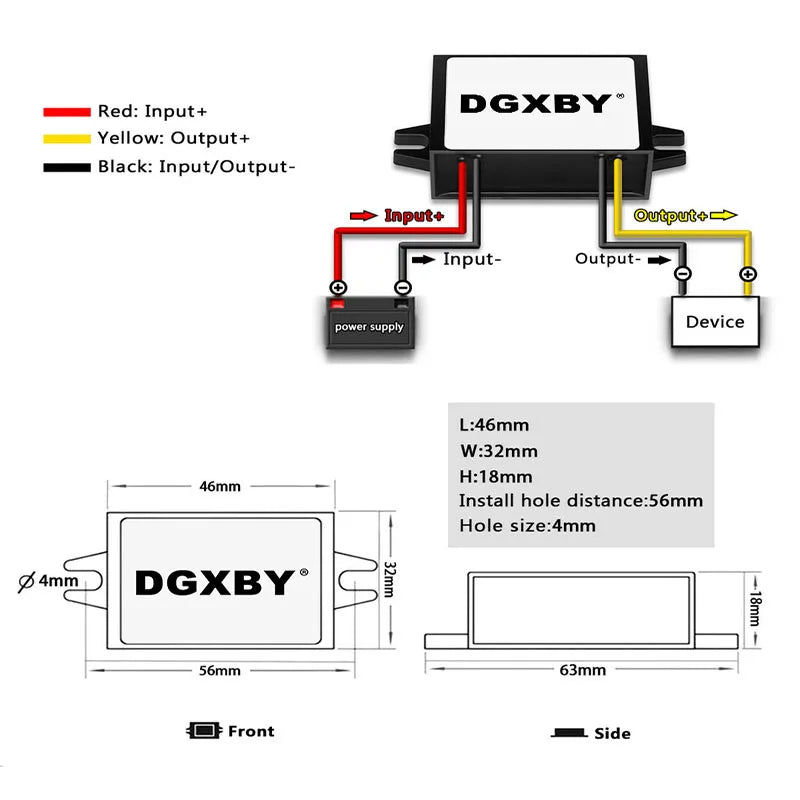

Wiring method: input red wire positive, black wire negative, black wire negative, yellow wire output positive. The input has no reverse polarity protection, please pay attention to wiring.
