Ancel PB100 Automotive Circuit Tester Power Circuit Probe Kit Electrical System Diagnostic Tool 12V 24V Voltage Power Scanner

£44.09 GBP

~~£44.09 GBP~~ £44.09 GBP

Sale Sold out

Color PB100

Ships From Australia spain CZECH REPUBLIC UNITED KINGDOM United States GERMANY

Quantity

SPECIFICATIONS

Brand Name: ANCEL

Certification: CE

Electronic: No

External Testing Certification: ce

Hardware Version: Newest Circuit Tester

Hign-concerned Chemical: None

Is Batteries Included: No

Item Type: Battery Testers

Item Weight: 1

Material: Plastic

Model Name: ANCEL PB100

Origin: Mainland China

Power (W): 24W

Software Version: Newest Power Probe Tester

Voltage: 12V

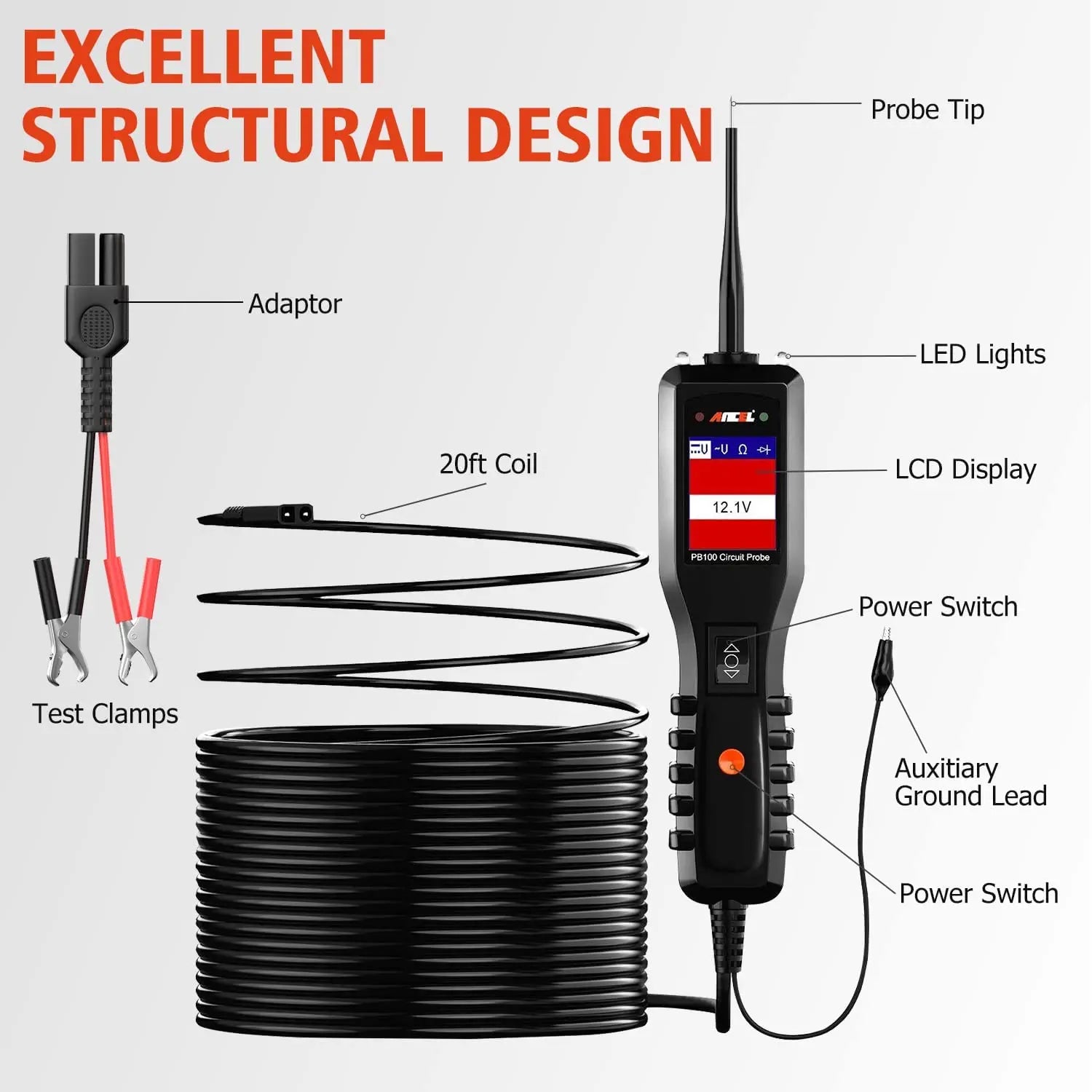

ANCEL PB100 Electrical System Circuit Tester Functions:

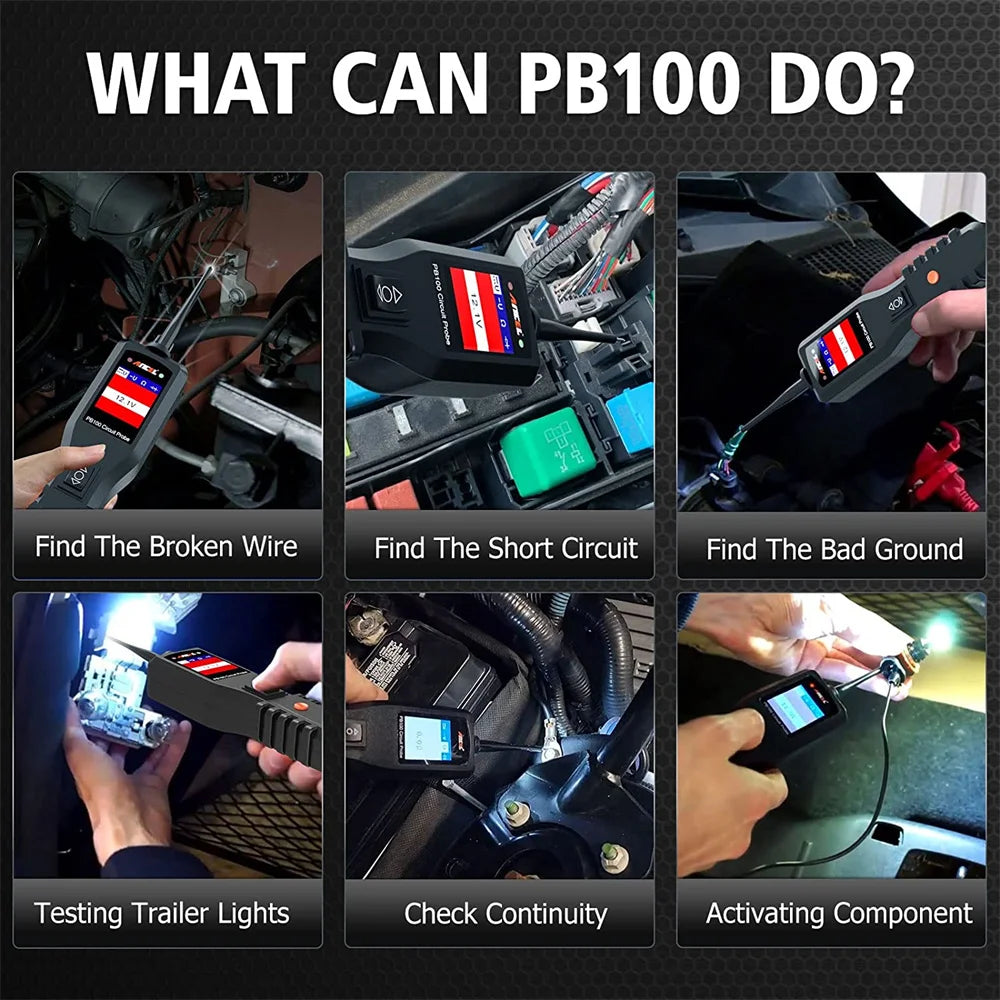

1. Power injection, measuring, ground testing, polarity checking, continuity testing and component activation.
2. Read the AVO meter, voltage, current, and resistance.
3.Energize the electrical components, such as the cooling fan, relay etc.
4. Activate the components
5. Determine the positive, negative and open circuit.
6. Test the bad ground contacts, follow and locate short circuits without wasting the fuse.
7. Test the continuity of the power switch, relay and diode.
8. Protect the tool from overload.
9. Allow you to work in the dark area by using the built-in head light.

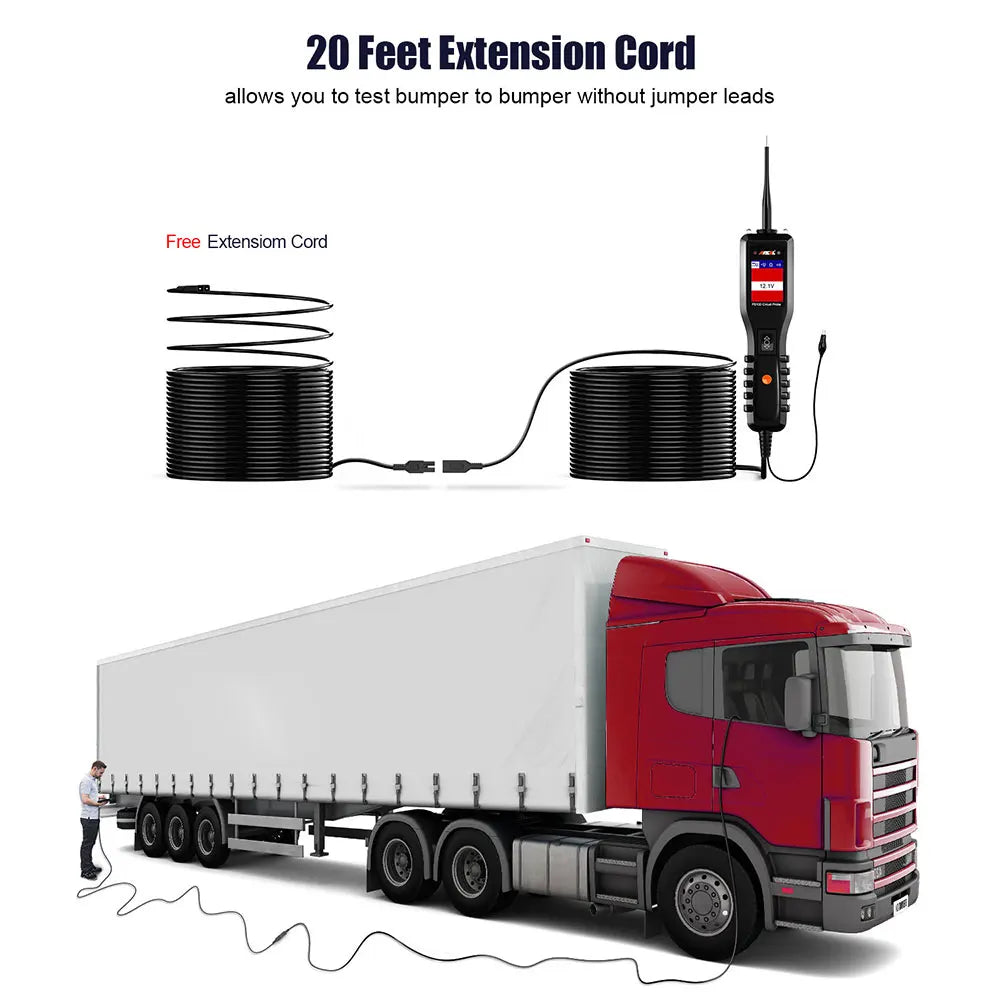

10. Test along the vehicle by the long cable.

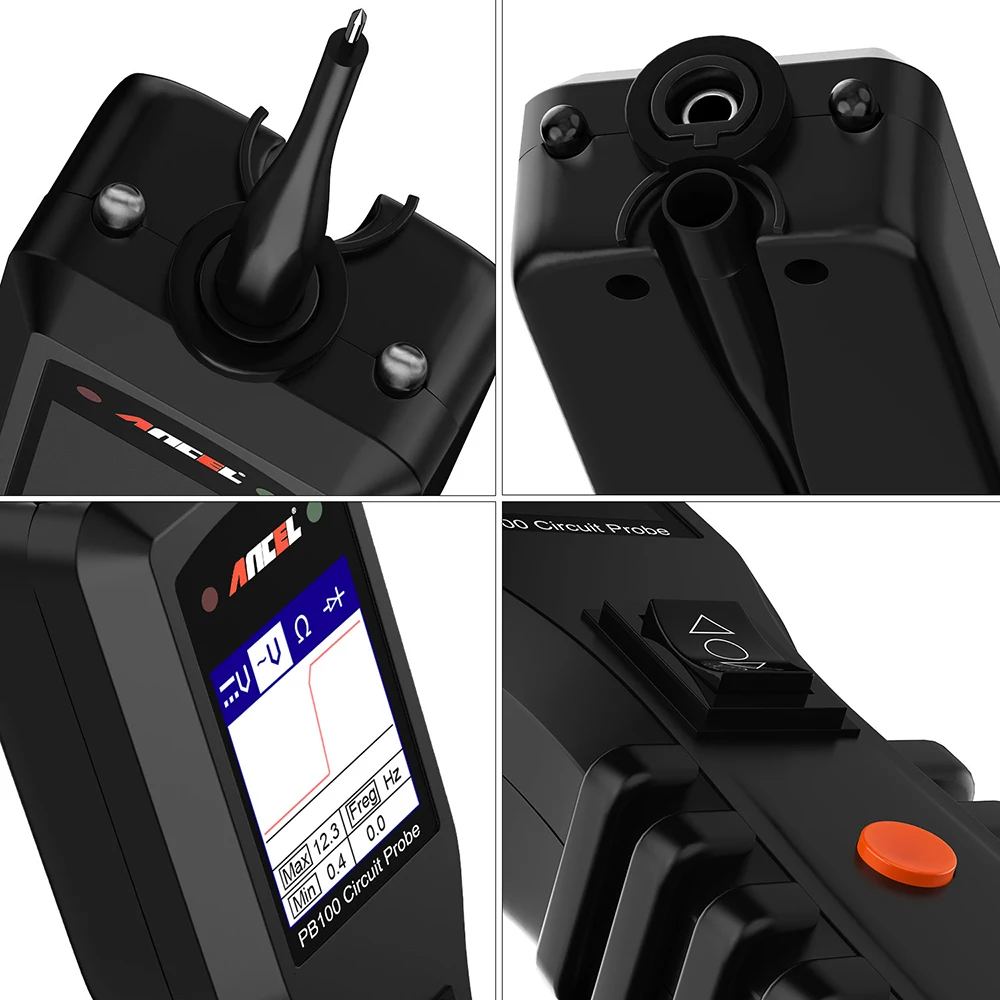

Specifications

◆ Display: TFT color display (160 x 128 dpi)
◆ Operating Temperature: 0 to 60C (32 to 140F)

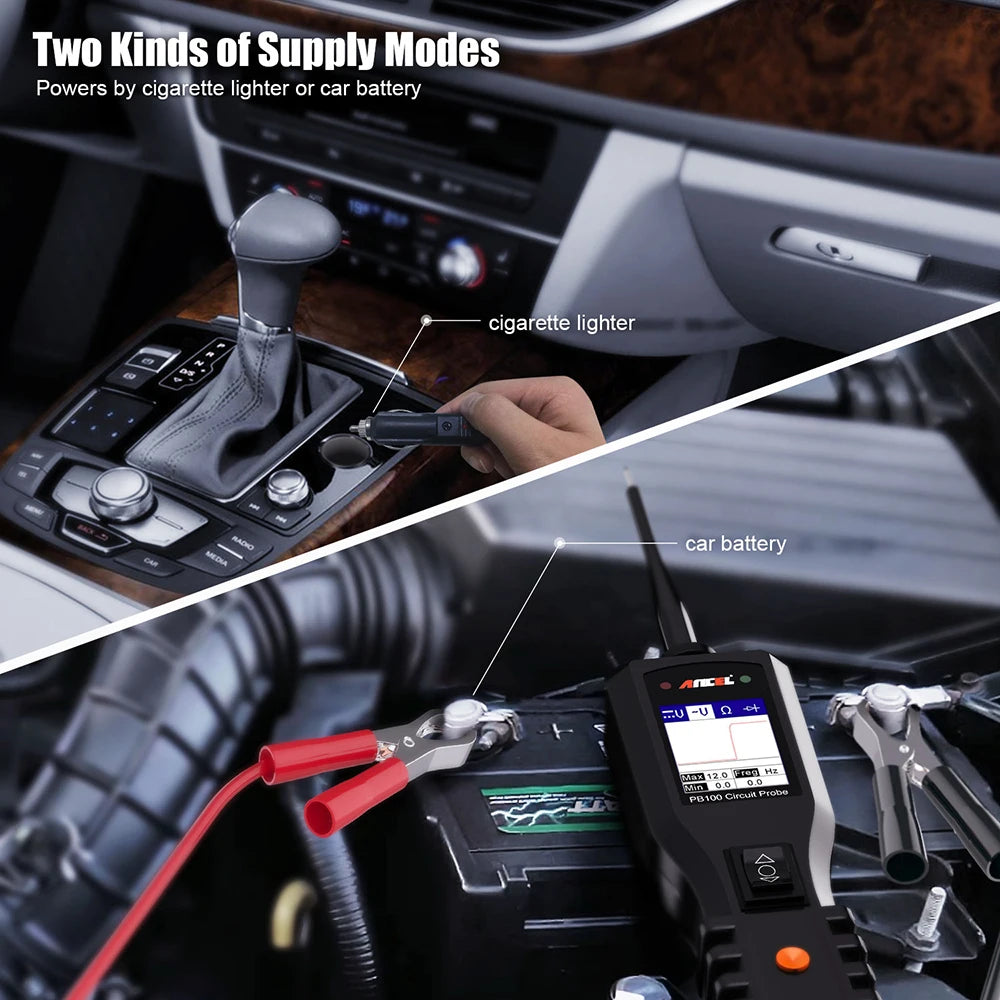

◆ External Power: 12.0 or 24.0 V power provided via vehicle battery
◆ DC voltage range: 0-65V +1digit
◆ Resistance range: 0-100 kΩ
◆ Frequency response of tone pass through 0Hz to 10Khz.
◆ Circuit Breaker
◆ Rating current: 1-10 Amp
◆ Testing Standard:
100% current: Hold > 1 hour
150% current: trip in one hour
200% current: trip in 3-30 seconds.
300% current: trip in 0.5-4.0 seconds.

ANCEL PB100 Product Function:

1. Work Mode

There are four modes to diagnose the electrical systems,which can be accessed by depressing the Mode Button and cycling through each one.

2. Voltage and polarity testing

3. Circuit Continuity Testing in Resistance mode

While the tool is in Resistance mode,using the probe tip with chass is ground or the auxiliary ground lead,continuity can be tested on wires and components attached or disconnected from the vehicle's electrical system.When the probe tip is contacting a good ground,the LCD will indicate"0.0Ω" and green LED wiil be on,A beep tone will sound.

4. Activating components in your hand

5. Activating components in the Vehicle

6. Testing trailer lights and connections

7. Signal Circuit Testing

For example,you suspect there is a problem with your M.A.P.?sensor circuit,then follow the procedure involved with testing this sensor:

Set the tool in AC Voltage mode,using the probe tip with chassis ground or the auxiliary ground lead.

Connect vacuum pump to MAP sensor.

Contact the probe tip to the MAP sensor positive terminal and observe the LCD readings which should be a sine wave in normal condition.

Apply vacuum

Release vacuum and observe the LCD readings

8. Activating components W/Ground

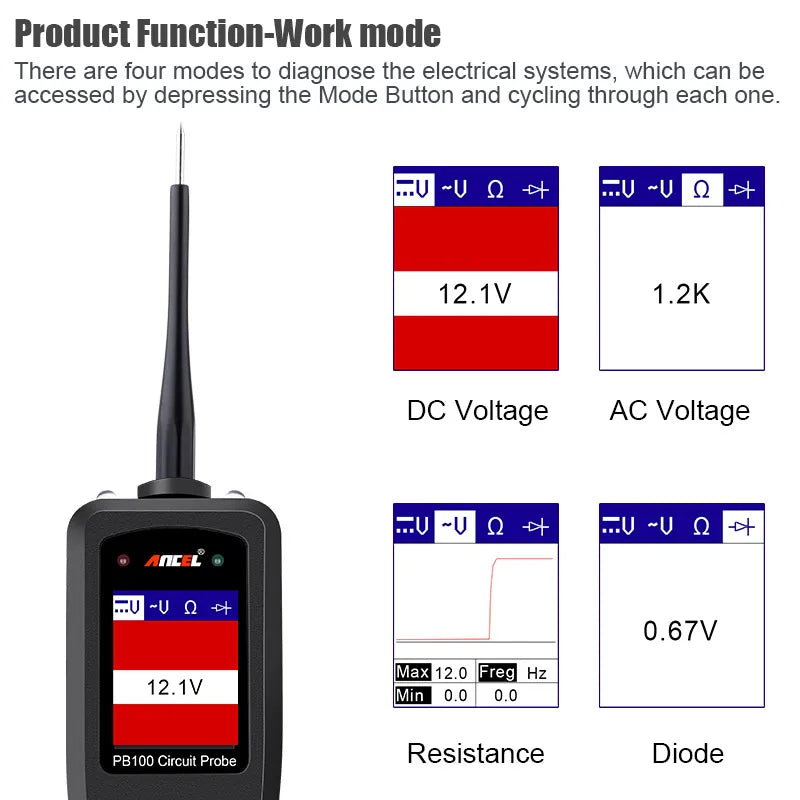

ANCEL PB100 Product Function:

There are four modes to diagnose the electrical systems, which can be accessed by depressing the Mode Button and cycling through each one.

✔️DC voltage

While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the DC voltage with a resolution of 0.1 volt.

✔️AC voltage

While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the Max. voltage, the Min. Voltage and frequency.

✔️Resistance

While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the resistance between the tip and auxiliary ground lead.

✔️Diode

In this mode, the probe tip contact the positive terminal of the diode, connect the auxiliary ground lead to the negative terminal of the diode, the screen will display the forward voltage drop, indicates the forward bias. If exchange the probe tip and auxiliary ground lead, the screen will not display the voltage, indicates the reversebias.

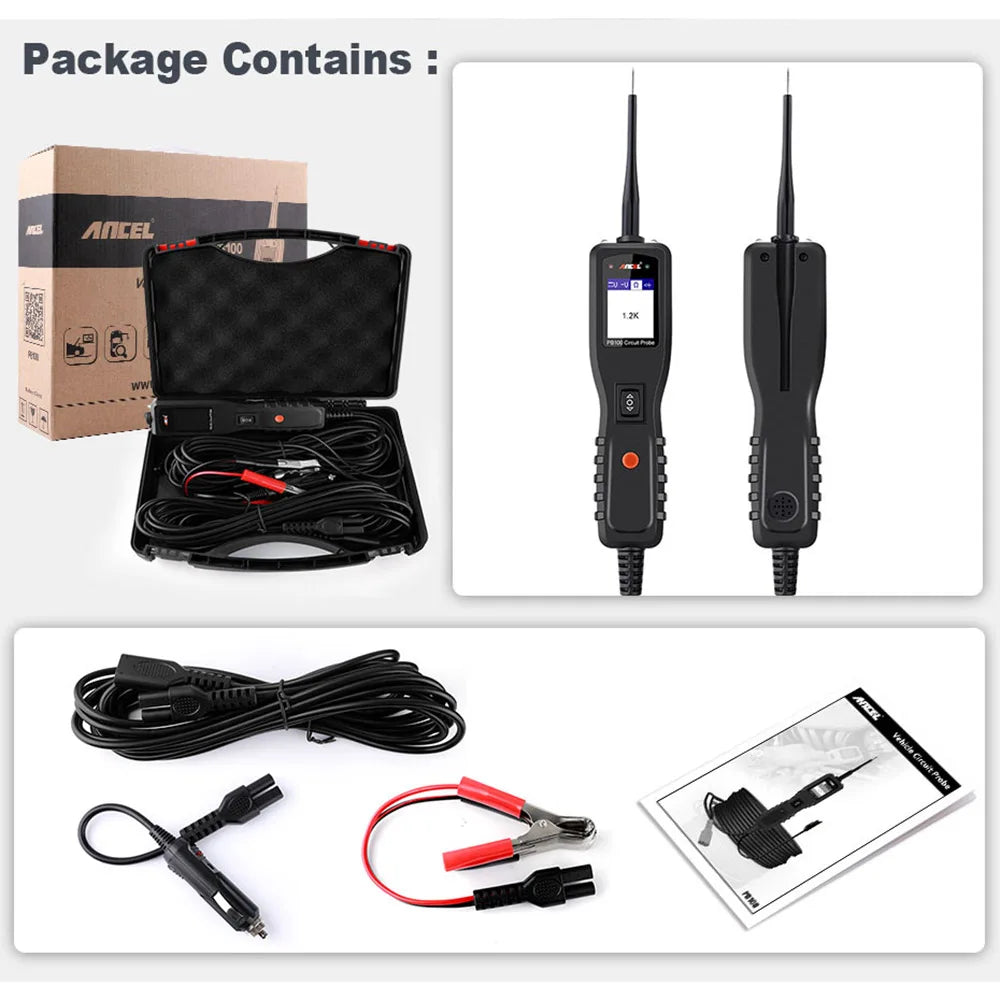

Package

1 x PB100 Circuit Probe
1 x Extension Cable (20ft)
1 x Battery Hookup Clips
1 x Cigarette Lighter Adapter
1 x Protective Case
1 x Probe tip
1 x User's Manual
