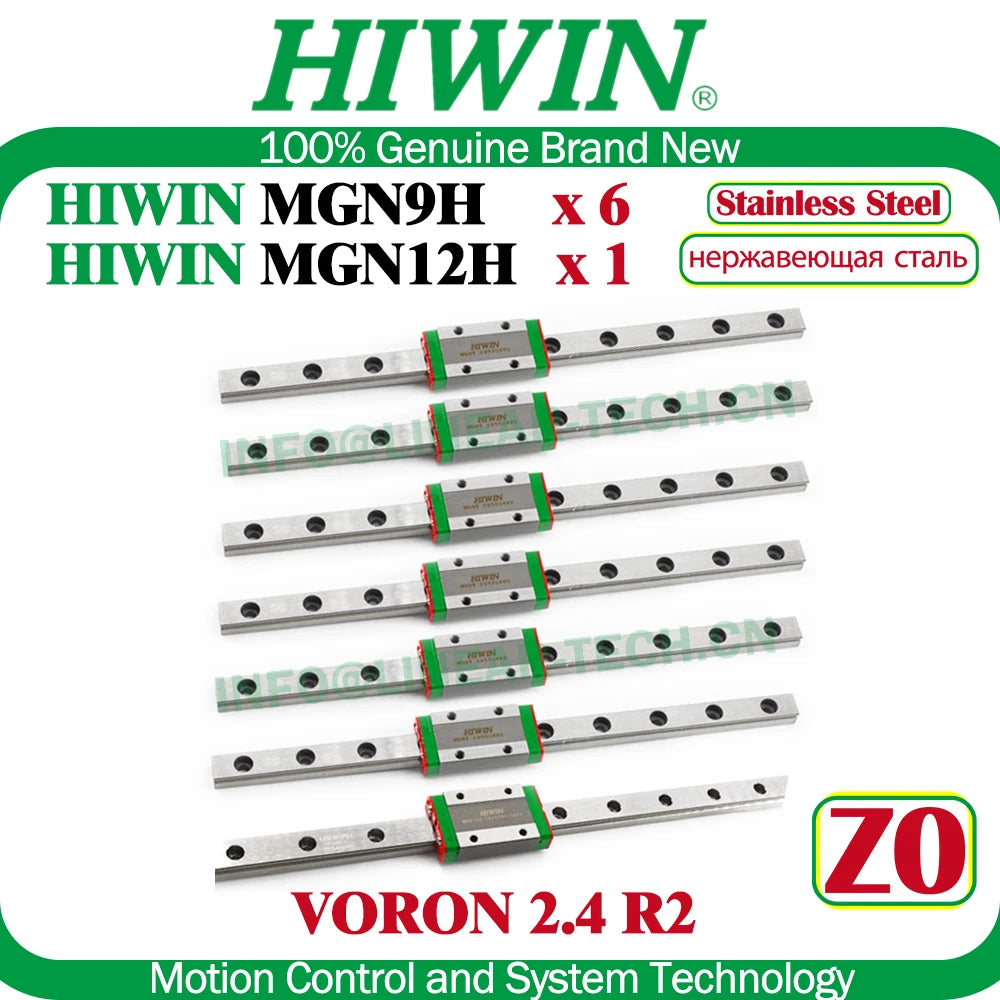

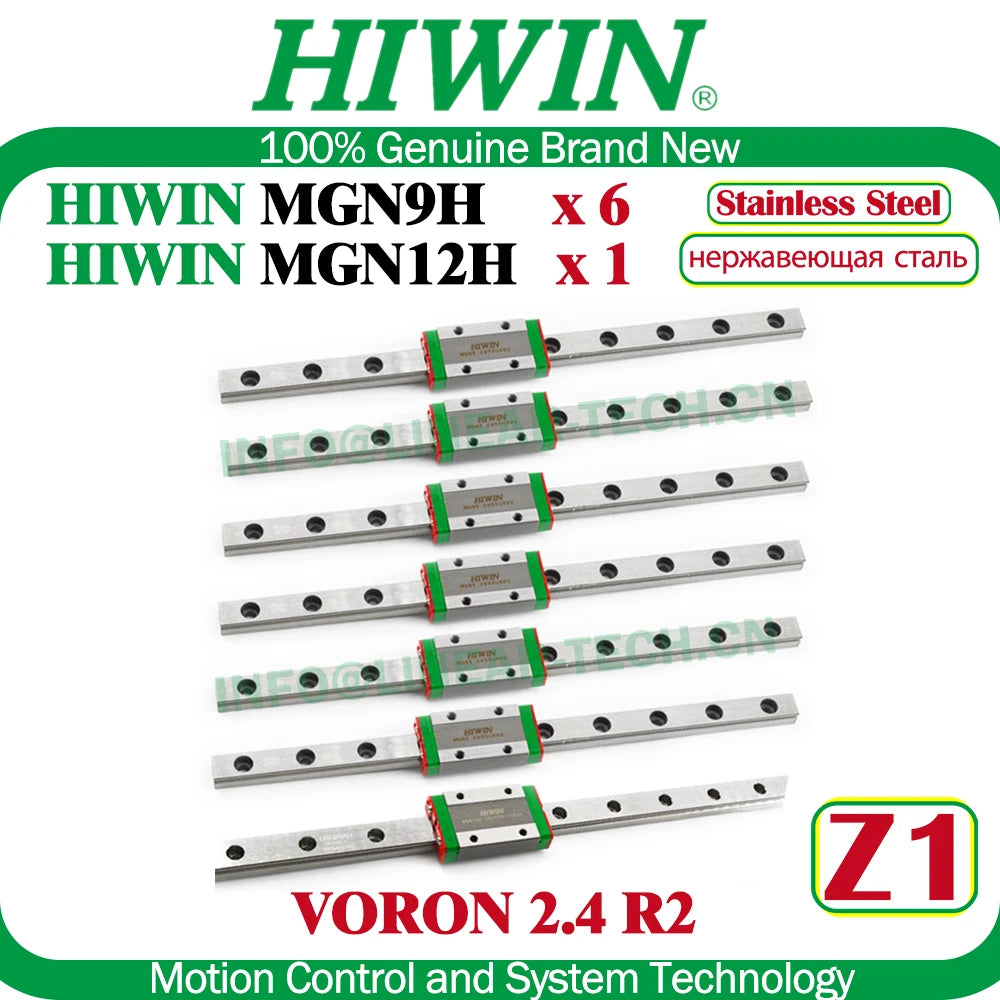

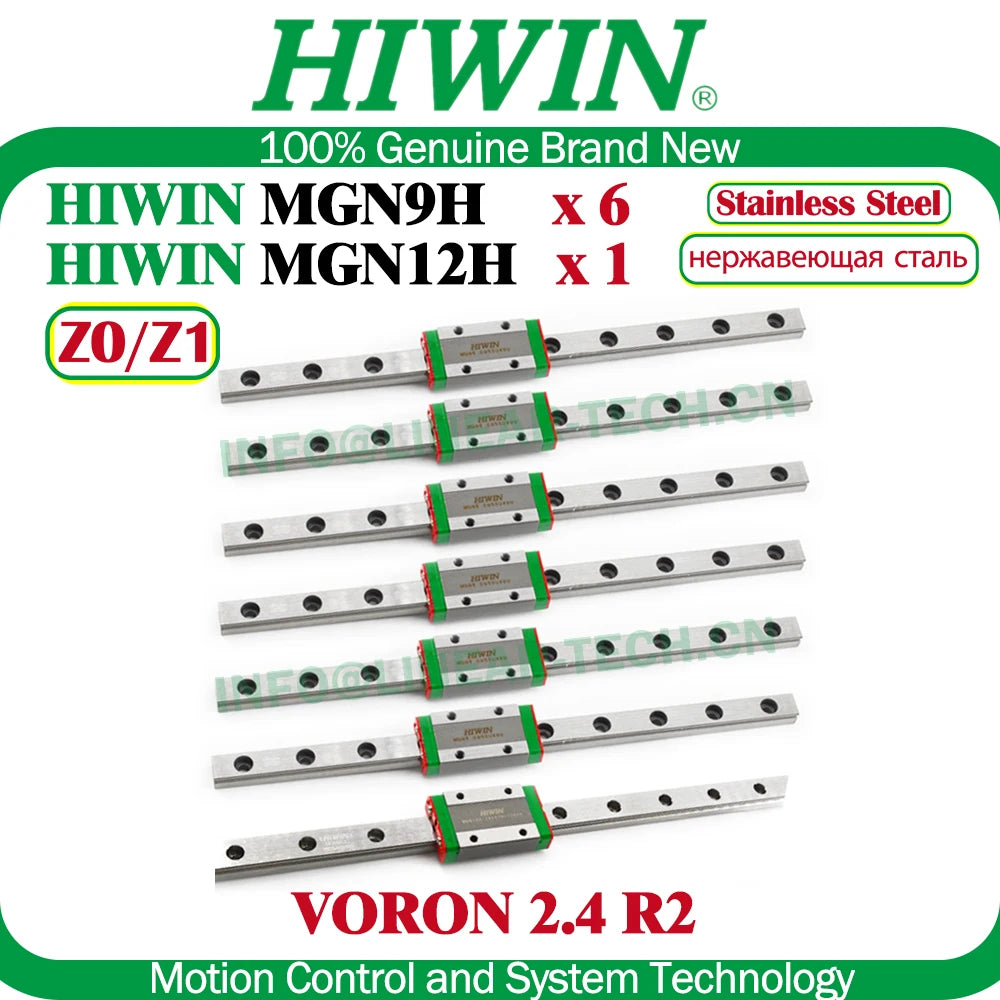

Voron 2.4 R2 HIWIN Rails 6xMGN9H 1xMGN12H Linear Rail Kit 250MM 300MM 350MM Build Stainless Steel Z0 Z1 NEW

HIWIN MG Series - Voron 2.4 - Packing List

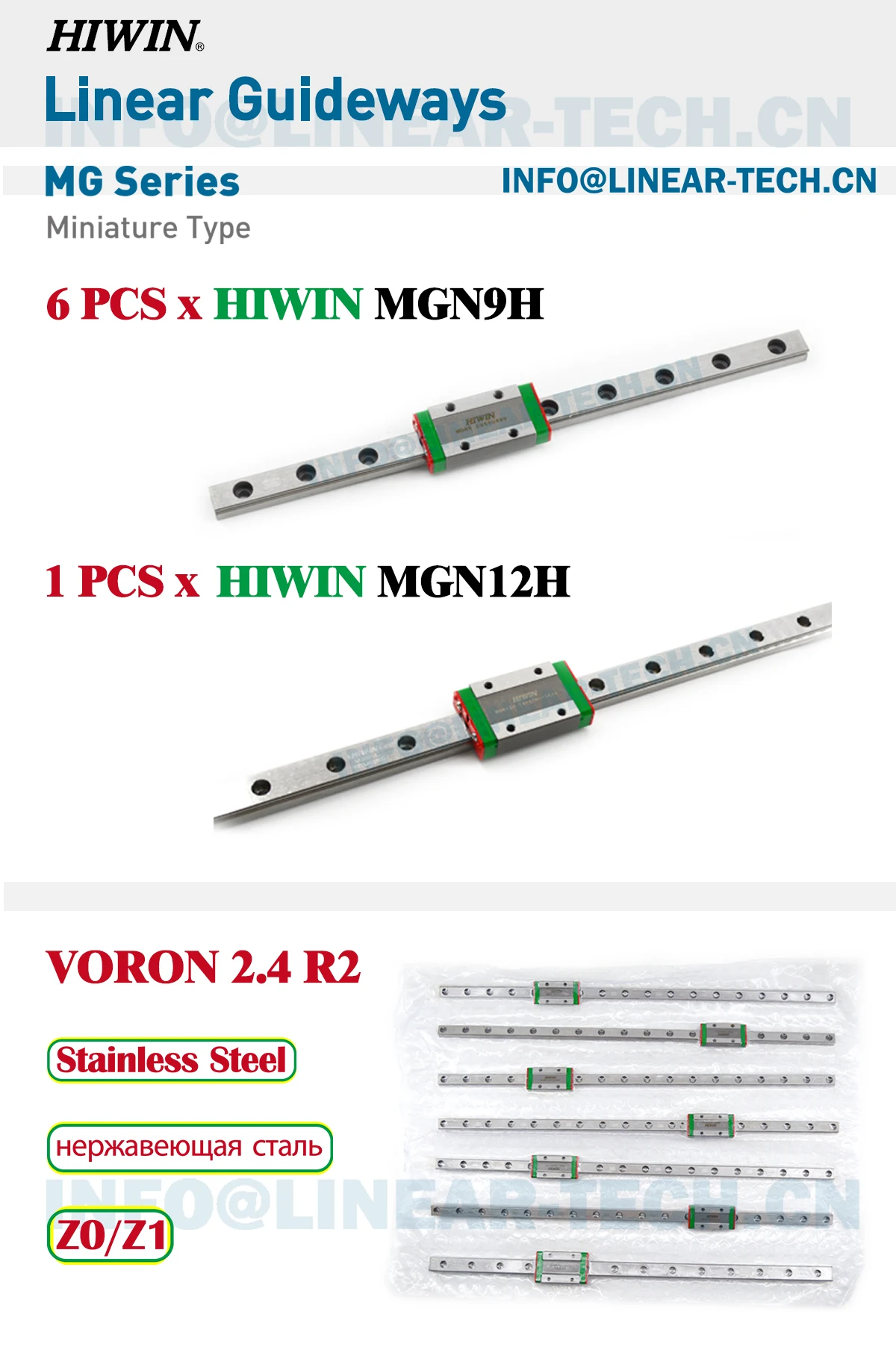

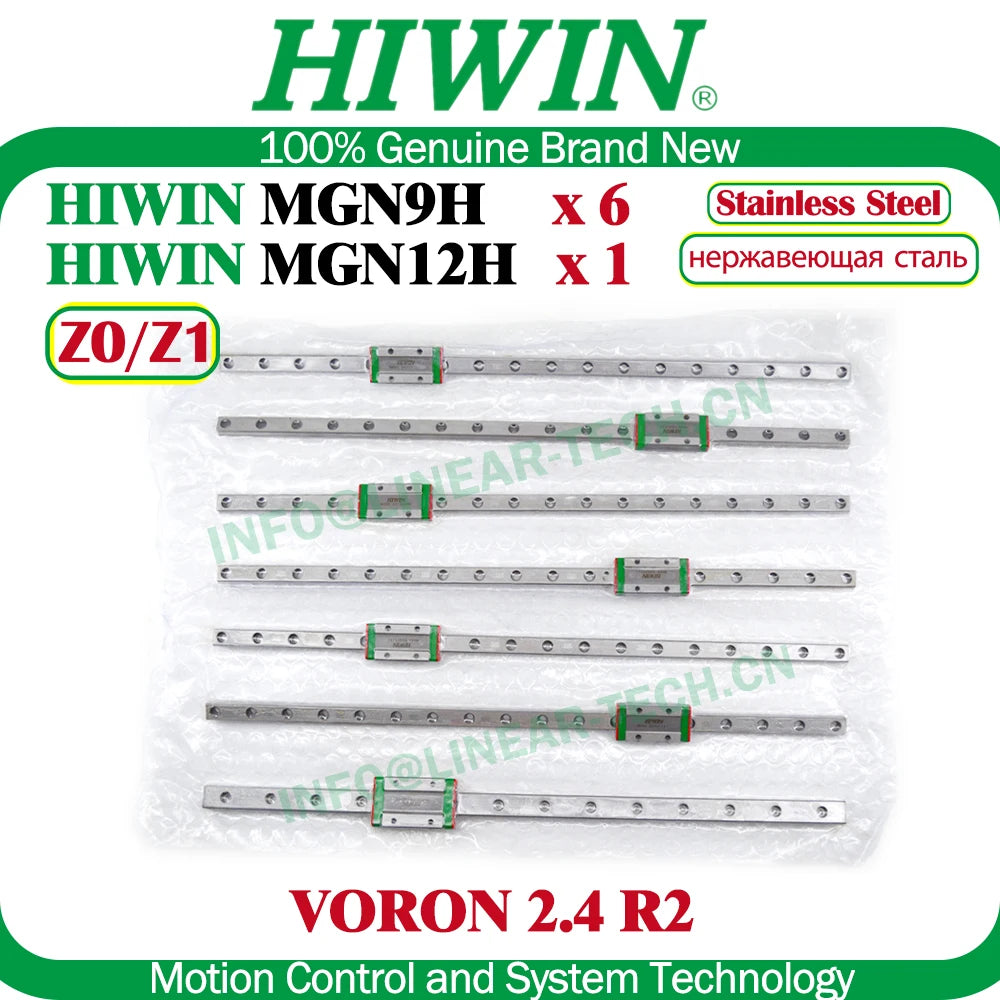

TOTAL 7 SETS: 6 SETS x HIWIN MGN9H + 1 SET x HIWIN MGN12H

6PCS HIWIN MGN9H-Z0/Z1-CM Blocks
6PCS HIWIN MGNR9R300/350/400MM Rails
1PCS HIWIN MGN12H-Z0/Z1-CM Block
1PCS HIWIN MGNR12R300/350/400MM Rail

HIWIN MG Series - Voron 2.4 - Model List

[ HIWIN 250MM Build ] = 6 x HIWIN MGN9H 300MM + 1 x HIWIN MGN12H 300MM

[ HIWIN 300MM Build ] = 6 x HIWIN MGN9H 350MM + 1 x HIWIN MGN12H 350MM

[ HIWIN 350MM Build ] = 6 x HIWIN MGN9H 400MM + 1 x HIWIN MGN12H 400MM

HIWIN MG Series - Voron 2.4 - Details

Preload Value: Z0/Z1
Accuracy: C
Material: Stainless Steel

Manufacturer: HIWIN
Origin: Taiwan
100% Original HIWIN, Brand-new

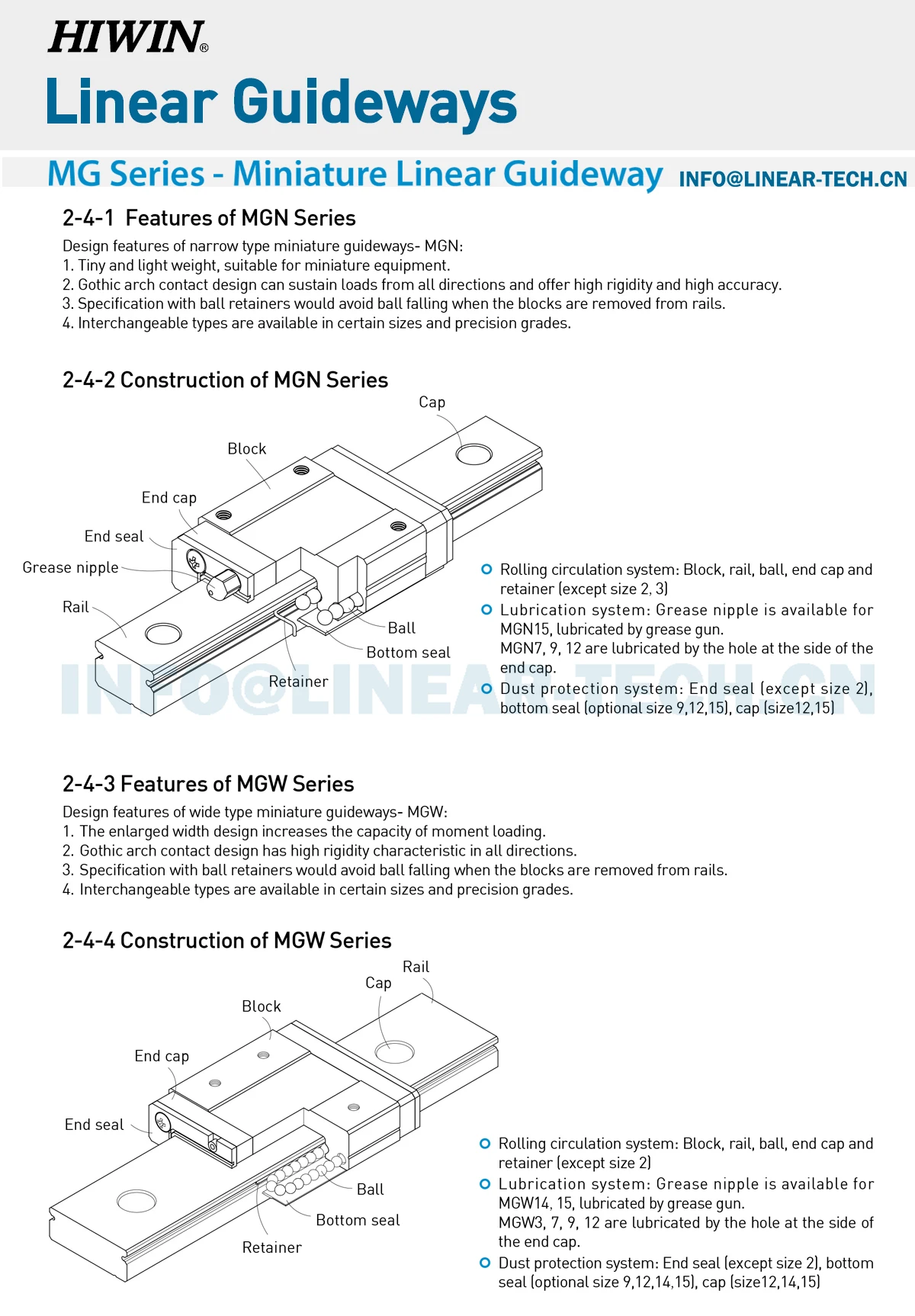

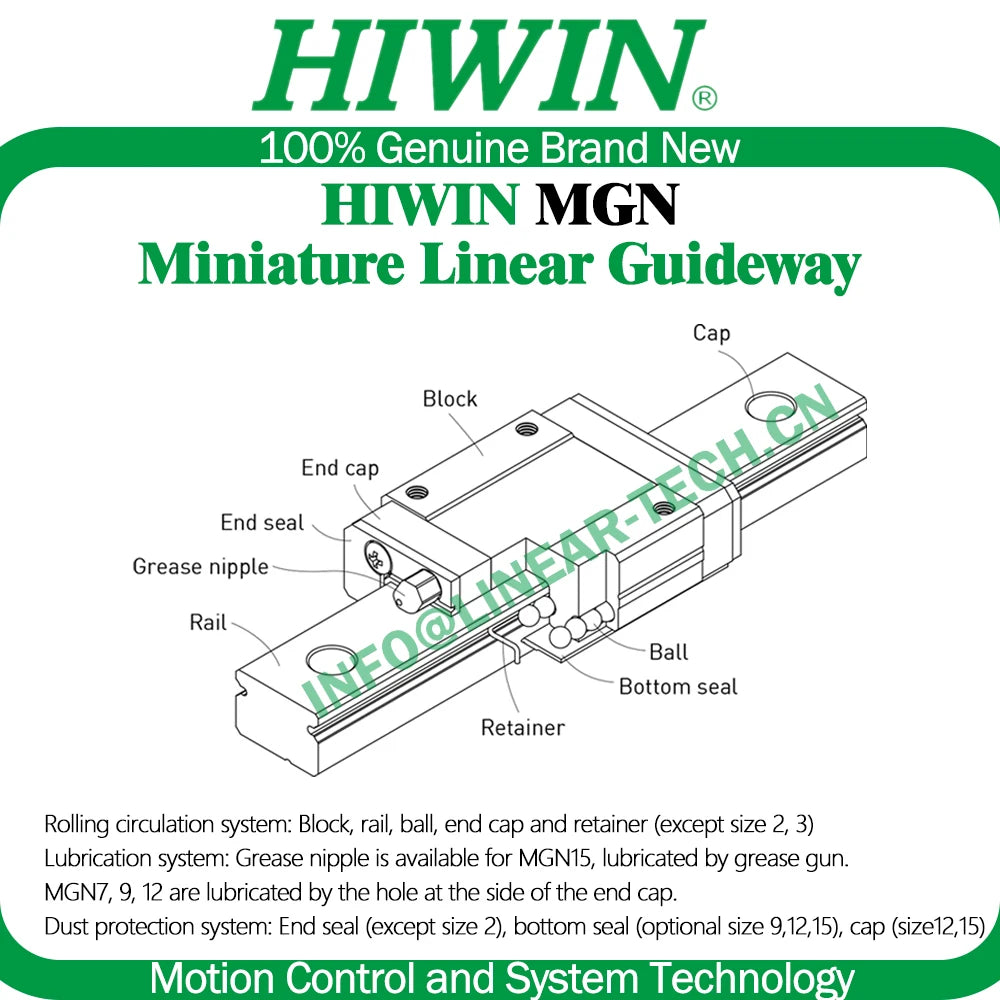

Features of HIIWN MGN Series

Design features of narrow type miniature guideways- MGN:
1. Tiny and light weight, suitable for miniature equipment.
2. Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy.
3. Specification with ball retainers would avoid ball falling when the blocks are removed from rails.
4. Interchangeable types are available in certain sizes and precision grades.

HIWIN MG Series - Main Application

3D Printer
Robotics
Precision measure equipment
Semiconductor equipment

Features of HIWIN MG Series

The MG Series with tiny and light weight design is suitable for miniature equipment. All materials are special grade of stainless steel and alloy steel for anti-corrosion ability.
Gothic arch contact design has high rigidity and accuracy characteristic in all directions.
Steel balls are constrained by miniature retainer so without loosing balls when remove the block MG Series.

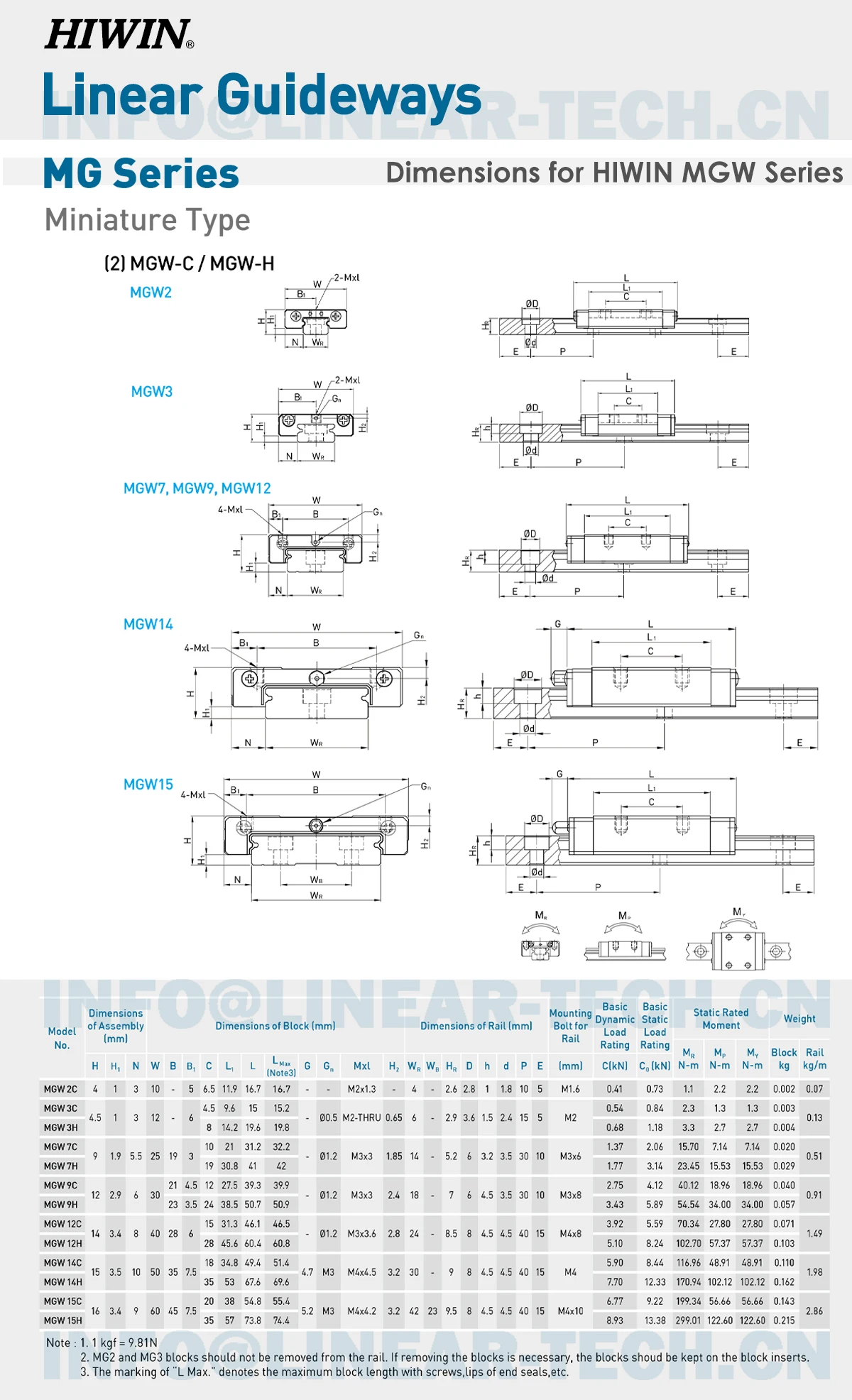

The design of enlarged width, MGW Series, has increased capacity of moment load. Gothic arch contact design has high rigidity characteristic in all directions. Steel balls are constrained by miniature retainer so without loosing balls when removing the block away from the rail.
All metal components are made of stainless steel for anti-corrosion ability.
